Model No.: DW
Mesh Belt Dryer for Rubber Industry,DW Series Mesh Belt Dryer Drying Dryer,Mesh Belt Dryer,Mesh Belt Drying Machine,Drying Machine

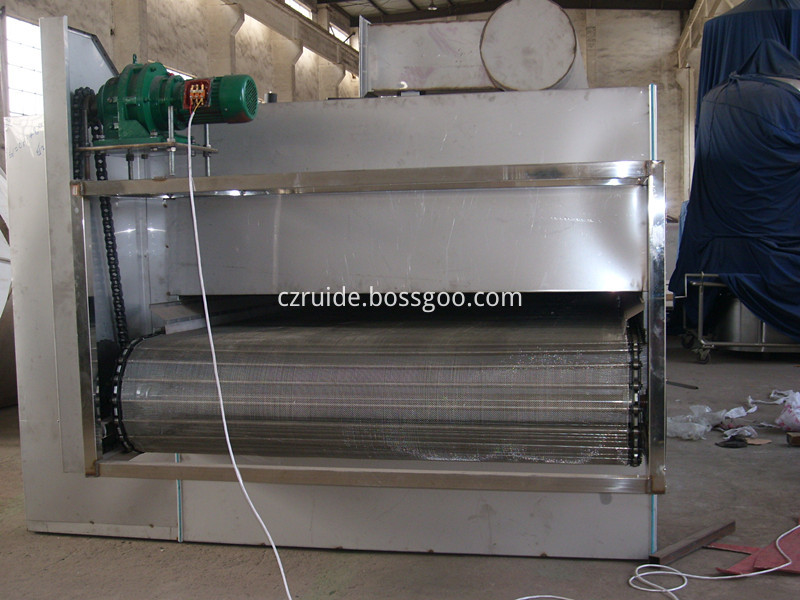

DW Belt Conveyor Mesh Dryer Equipments For Food Product introductionThis machine is a continuous penetrating flow dryingequipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of
traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not a llowed.The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality . The de-watered & ltered cake state paste material should be made into particles or strips before drying process.
DW Belt Conveyor Mesh Dryer Equipments For Food Characteristics
◎Equipments configuration is very flexible. It can use the netlike belt washing system and cooling raw material system.
◎Hot air can be circularly applied, the energy is greatly saved.
◎Unique air dividing device, it makes hot air distribute uniformly; this can guarantee products' quality .
◎Heating source can be selected from steam, conducting heat oil, electricity , coal furnace and oil burner .
DW Belt Conveyor Mesh Dryer Equipments For Food Working Principle
according to the production demands.
DW Belt Conveyor Mesh Dryer Equipments For Food Technical Parameter
|quantity of unit||4||5||4||5||4||5||10|
|width of belt(m)||1.2||1.6||2|
|length of dry section(m)||8||10||8||10||8||10||20|
|thickness of raw material spreading(mm)||10-80|
|steam consumption (kg/h)||120-300||150-375||150-400||180-500||180-500||225-600||450-1200|
|dry time (h)||0.2-1.2||1.25-1.5||0.2-1.2||0.25-1.5||0.2-1.2||0.25-1.5||0.5-3|
|dry capacity kg water/h||60-160||80-200||85-220||100-260||100-260||120-300||240-600|
|total equipped power (kw)||11.4||13.6||14.6||18.7||19.7||24.5||51|
